1301A.C09 16.0 + 1302A.C09 00.0 Capacitor Duty Contactor 240V/480V/600VAC, 12/16/20 kVar, 200,000 Operations, AC 6B - Ideal for Industrial Power Factor Correction & Motor Control Applications
$51.15
$93
Safe 45%
1301A.C09 16.0 + 1302A.C09 00.0 Capacitor Duty Contactor 240V/480V/600VAC, 12/16/20 kVar, 200,000 Operations, AC 6B - Ideal for Industrial Power Factor Correction & Motor Control Applications
$51.15
$93
45% Off
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
16 people viewing this product right now!
SKU: 74613955
Guranteed safe checkout
Description
1301A.C09-16.0 + 1302A.C09-00.0, Capacitor Duty Contactor 240/480/600VAC @ 12, 16, 20 kVar, 200,000 Operations, AC-6B

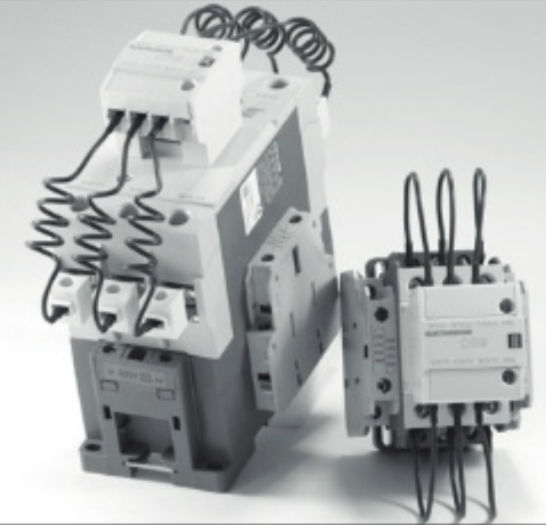

Capacitor duty contactors are designed to meet the requirements of capacitor duty applications. Contactors are fitted with a block of three auxiliary contacts connected in series with six quick discharge damping resistors, two per each phase. Peak current is limited to the value within the contactor making capacity.
Features :
- Capacitor Duty
- Discharge Resistors
- Three-pole contactors
- Seven ratings from 12,5 kVAr to 60 kVAr
- IEC 60947-4-1 for AC-6b utilization category
- UL Approved
Advantages :
- Conforms to utilization category AC-6b
- Saves costs of expensive replacement
- Long electrical life
- Reduces watt losses during “ON” condition, saves energy
- High safety
- No risk of dangerous voltage
- Switching of capacitor bank in parallel without de-rating
- Less maintenance and downtime
- Standard control voltages: 24 V 50/60 Hz, 220 V 50/60 Hz, 230 V 50/60 Hz, 415 V 50/60 Hz
Specification
| Electronicon Part Number | 1301A.C09-16.0 + 1302A.C09-00.0 |
| Functions | 3 Pole Capacitor Duty Contactor |
| Nominal Voltage | 230/480/600VAC @ 50Hz |
| Current Carrying Capacity as per UL | 12kVar/Amp @230VAC, 16kVar/Amp@480VAC, 20kVar/Amp@600VAC, AC-6B |
| Auxiliary Contacts | 1 x NO and 1 x NC |
| Trip Delay Time | 2-10ms |
| Electrical Life | 200,000 Ops |
| Operating Temperature | -25 to 40 Deg C |
| Mechanical Operations | 15,000,000 Ops |
| Control Voltage | 240VAC |
| Power Dissipation | 0.36W |
| Approvals | UL |
| Standards | IEC/EN 60947-4-1, AS/NZ 61009-1, AC-6B |
| Weight | 200g |
| Enclosure Material | UL94 |
| Factory Pack Qty | 1 |
